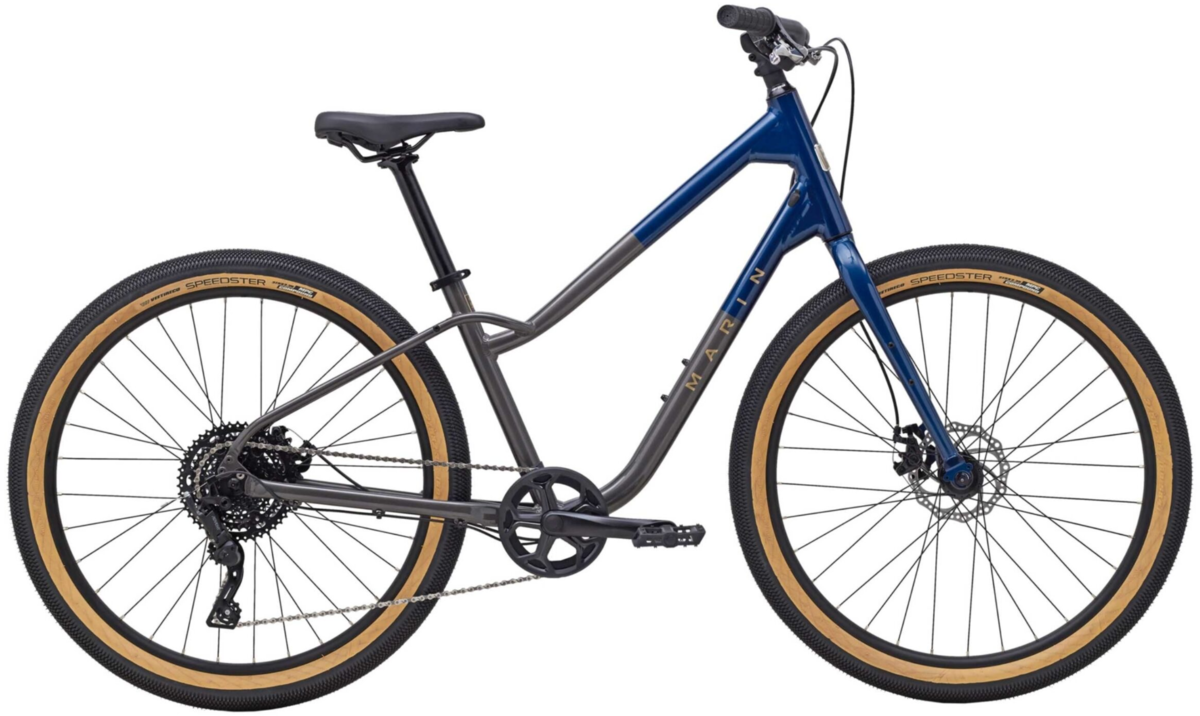

Marin Stinson 2

Marin Stinson 2
  • Color: Gloss Charcoal/Blue/Tan
  • Color: Charcoal
$699.00
Please select options Unavailable
Sorry, this item is currently not available. It may be available as a special order item. Special order items will not be discounted. Only in stock bikes can be discounted if on sale. Please call us at 763-420-8878 for more information.

Details

The Stinson brings a new level of comfort and control to your ride. This model has a lightweight Series 1 aluminum frame with low standover, an ergonomic handlebar, plush saddle, and versatile, high-volume 27.5" tires with mixed tread for control on a variety of surfaces. Design features include our Comfort Control Geometry with upright seating and the ability to touch the ground with the forefoot, while maintaining proper saddle height for pedaling efficiency.

SERIES 1 ALUMINUM FRAME
- The Stinson features a Series 1 6061 aluminum frame with exceptionally low standover, disc brake mounts, and rack and fender eyelets and high-volume 27.5” wheels. Stinson ST models further lower the standover height with a step-through frame design.

COMFORT CONTROL GEOMETRY
- Marin Comfort Control geometry allows you to touch the ground with your forefoot when the saddle is at the correct height for full pedaling leg extension.

COMFORT SADDLE
- All Stinson models utilize our comfort saddle, which is wide and supportive, but not *too* squishy. The perfect balance of comfort and efficiency.

WIDE-RANGE GEARING
- Wide-range, 1x gearing is simple to use and offers as large if not larger of a gear range than multi-chainring bikes of the past.

DISC BRAKES
- Disc brakes provide sure stopping power in all conditions, while being powerful and easy to modulate.

27.5” TIRES
- Large volume 27.5” x 2.35” tires are capable and comfortable across a range of surfaces.

Sizes:
SIZESmallMediumLargeX-Large
A - Stack (mm) 628.2 646.9 665.5 679.4
B - Reach (mm) 340 355 370 381.6
C - Headtube Angle (°) 68.5° 68.5° 68.5° 68.5°
D - Headtube Length (mm) 210 230 250 265
E - Seattube Angle (°) 67° 67° 67° 67°
F - Seattube Length (mm) 382 406 444 470
G - Toptube Effective (mm) 606.7 629.6 652.5 670
H - BB Height (mm) 276.5 276.5 276.5 276.5
I - BB Drop (mm) 68 68 68 68
J - Chainstay (mm) 485 485 485 485
K - Wheelbase (mm) 1083.9 1106.2 1128.6 1145.65
L - Standover Height (mm) 618.44 618.48 674.72 675.89
M - Fork Offset (mm) 40 40 40 40
Seatpost Diameter (mm) 30.9 30.9 30.9 30.9
Handlebar Width (mm) 700 700 700 700
Stem Length (mm) 45 45 45 45
Crank Length (mm) 170 170 170 170
Sizes:
SIZESmallMediumLargeX-Large
Rider Height (In) 5'0" - 5'5" 5'5" - 5'8" 5'8" - 5'11" 5'11" - 6'2"

Specs

Frame Series 1 Comfort, 6061 Aluminum, 27.5” Wheels, Disc Specific, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts
Fork CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets
Wheels Marin Aluminum Double Wall, Disc Specific
Hubs Forged Aluminum Alloy, 32H
Tires Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
Bottom Bracket Sealed Cartridge Bearings, Square Taper
Crankset Alloy Crank, Steel 38T Chainring, Ring Guard
Shifters microSHIFT Advent 9-Speed
Rear Derailleur microSHIFT Advent 9-Speed Wide Range
Cassette/Freewheel microSHIFT 9-Speed 11-46T
Chain KMC X9
Brakes Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Brake Levers Shimano w/ Integrated Shifters
Handlebars Marin Alloy, 25mm Rise, 18° Backsweep
Tape/Grips Marin Adventure
Stem Marin Alloy, 31.8mm Clamp
Headset FSA, TH No.10P
Seatpost Marin Alloy, 30.9mm
Saddle Marin Comfort
Pedals Marin Oso OE Flat

* Subject to change without notice.

Part Numbers

Option UPC MPN
Gloss Charcoal/Blue/Tan / Small 843346124357 737624001
Gloss Charcoal/Blue/Tan / Medium 843346124319 737624002
Gloss Charcoal/Blue/Tan / Large 843346124272 737624003
Gloss Charcoal/Blue/Tan / X-Large 843346124289 737624004
Charcoal / Small 843346124340 737625001
Charcoal / Medium 843346124302 737625002
Charcoal / Large 843346124241 737625003
Charcoal / X-Large 843346124265 737625004
