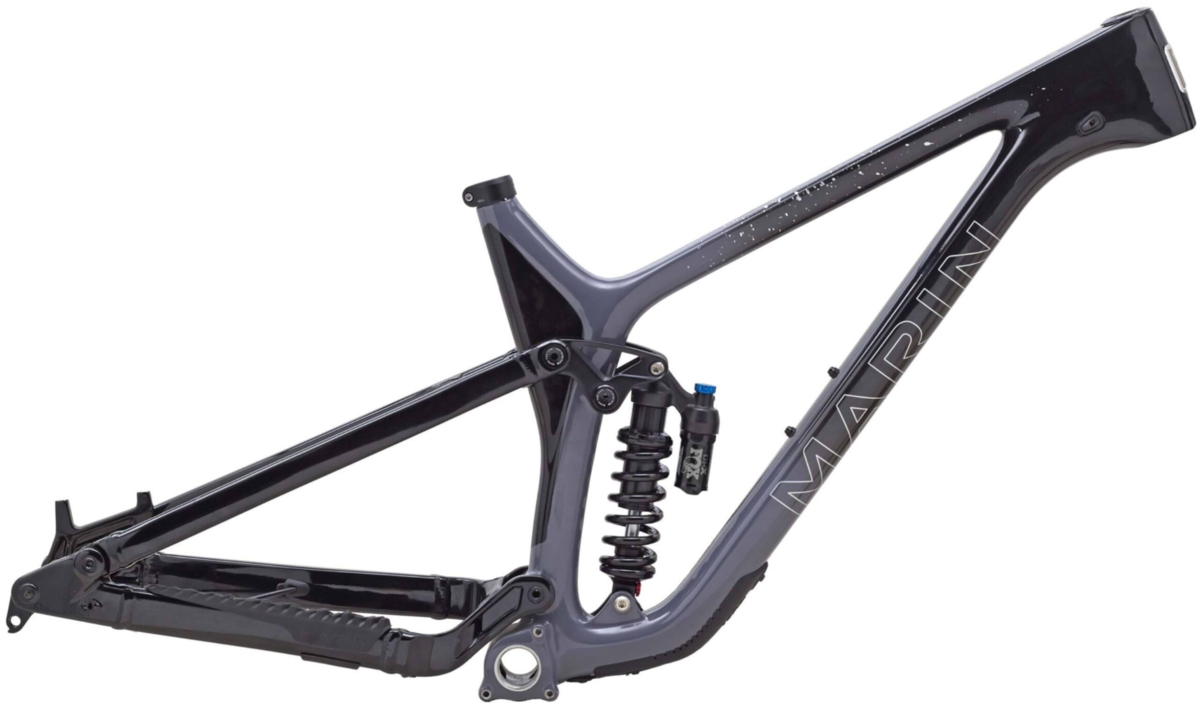

Marin Rift Zone Carbon XR Frame Kit

Marin Rift Zone Carbon XR Frame Kit
  • Color: Gloss Grey/Carbon
$2,349.00
Color:
Gloss Grey/Carbon
Please select options
Sorry, this item is currently not available. It may be available as a special order item. Please call us at 763-420-8878 for more information.

Details

The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29" wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.

Geo Chart

Geometry Chart:
SizeSmallMediumLargeX-Large
STACK (A) (mm) 605.64 610.32 614.92 619.6
REACH (B) (mm) 425.72 450.74 475.84 510.97
HEADTUBE ANGLE (C) 65.1° 65.1° 65.1° 65.1°
HEADTUBE LENGTH (D) (mm) 100 105 110 115
SEATTUBE ANGLE (E) 76° 76° 76° 76°
SEATTUBE LENGTH (F) (mm) 390 400 425 430
TOPTUBE EFFECTIVE (G) (mm) 576.72 602.91 629.16 665.44
BB HEIGHT (H) (mm) 347 347 347 347
BB DROP (I) (mm) 31 31 31 31
CHAINSTAY (J) (mm) 425 425 425 425
WHEELBASE (K) (mm) 1164.899 1191.97 1219.12 1259.11
STANDOVER HEIGHT (L) (mm) 648 655 664 667
FORK OFFSET (M) (mm) 44 44 44 44
SEATPOST DIAMETER (mm) 30.9 30.9 30.9 30.9
HANDLEBAR WIDTH (mm) 780 780 780 780
STEM LENGTH (mm) 35 35 35 35
CRANK LENGTH (mm) 170 175 175 175

Specs

Frame Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Rear Shock Fox Factory Series Coil, Coil Spring, Climb Switch, Rebound & Compresion Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom
Headset FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Accessories & Extras Marin MTB Seat Clamp, Bolt Type
Bolt-On Thru-Axle
Downtube Protector

* Subject to change without notice.

Part Numbers

Option UPC MPN
Gloss Grey/Carbon / Small 843346113825 733932001
Gloss Grey/Carbon / Medium 843346113832 733932002
Gloss Grey/Carbon / Large 843346113849 733932003
Gloss Grey/Carbon / X-Large 843346113856 733932004
